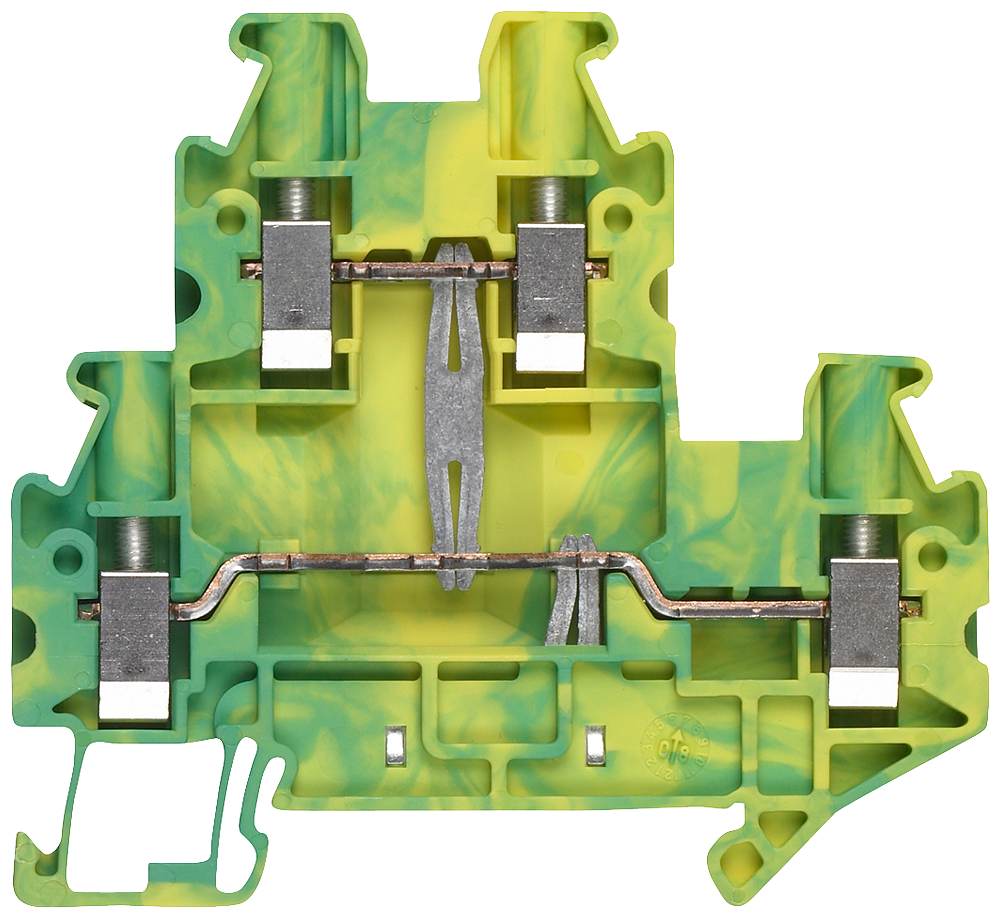

PE-TOW-TIER TER. 4QMM, 6, 2MM

Item Specifications

• Closing plate required
  TRUE
• Combustibility class
  V0
• Connection type
  Screw Connection
• Connection type 2
  Screw connection
• Explosion tested design (EEx e)
  FALSE
• height at lowest possible mounting
  65 millimetre
• Levels internally bridged
  FALSE
• material of insulation
  Thermoplast
• max. connectable conductor cross-section fine wire with conductor end sleeve
  4 millimetre^2
• Max. line cross section, rigid
  6 millimetre^2
• min. connectable conductor cross-section fine wire with conductor end sleeve
  0 millimetre^2
• Min. line cross section, rigid
  0 millimetre^2
• Number of contact points per level
  2
• Number of levels
  2
• Width of spacing
  6 millimetre
• Item Weight
  0.06 lbs per EA
